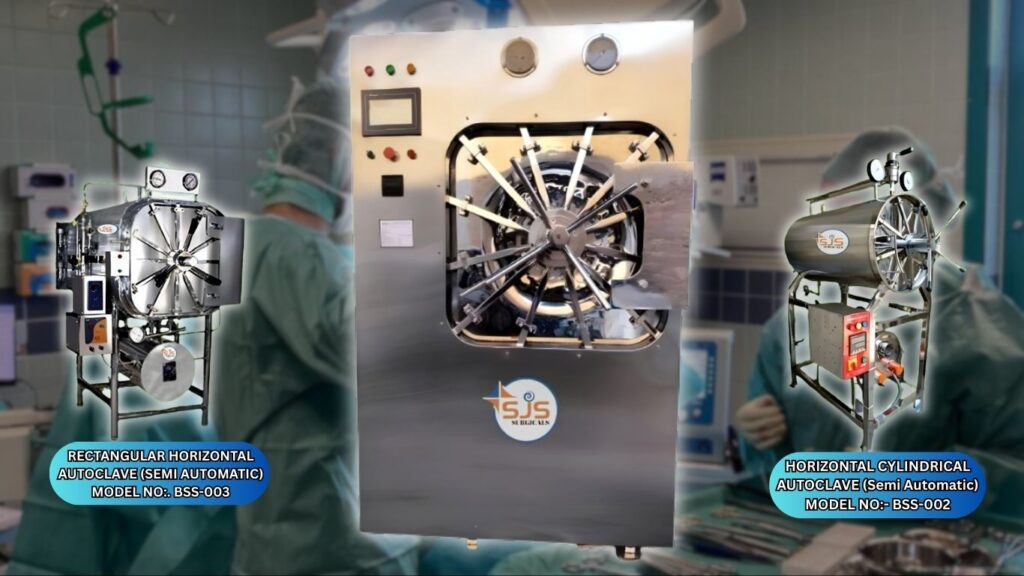

RECTANGULAR HORIZONTAL AUTOCLAVE
(FULLY AUTOMATIC)

MODEL NO:. sjs

DESCRIPTION :

SJS Surgical have wide range Of horizontal Rectangular Autoclaves. Semi Automatic Rectangular Autoclave will be front loading and in Horizontal shape with triple layer with boiler. These high pressure front loading play important role in sterilization procedure required in hospitals , pharmaceutical companies, biopharma & microbiology lab etc. Horizontal Rectangular Autoclave unit are made of SS to ensure corrosion resistance surface. Triple walled construction ensure excellent level Of safety. Boiler is fitted separately and connected to the chamber. water level is also attached to the boiler with automatic IOW water cut-off. User can easily set the desired temperature with the help of digital controller fitted on the front side Of the unit. we provide radial locking pressure door with silicon gasket.

CONSTRUCTION AND SALIENT FEATURES

  • Rectangular Horizontal Autoclave Triple layer with Radial Locking Semi automatic microprocessor based PID controller Vaccum ejector for dry system
  • Stainless steel interior & exterior
  • Inner chamber made by ss 304/316
  • Jacket also made of SS304
  • All piping and fitting made by ss304
  • Standard temperature 121 to 134 degree
  • Working pressure 15-30 PSI
  • Hydraulic Tested up to 66psi
  • Steam trap & NRV
  • Steam storage in jacket
  • Silicone jointless gasket
  • Automatic pressure control switch
  • Vaccum breaker i
  • ISI safety valves
  • Digital temperature controller with
  • time & buzzer
  • Automatic water level cut – off
  • pressure & compound gauges Of SS
  • ISI mark immersion heating elements

TECHNICAL SPECIFICATION

  • GASKET
  • EXHAUST PRESSURE
  • WORKING PRESSURE
  • PRESSURE GAUGE
  • TUBULAR STAND
  • SUPPORTING RING
  • PRESSURE GAUGE
  • EXTERNAL WALL
  • TOP LID
  • TRAY
  • BASKET
  • : Made of joint less silicon rubber
  • : Manually through the exhaust
  • valve, sterilizing pressure: 1.2 to
  • 2.5kgf/cm2 (15 to 35 Psi) at
  • 1210c to 1340C
  • : From 15 psi to 35 psi
  • : 0.2.1 kgf/cm2 (60 psi)
  • : SS 304 Grade Stainless Steel
  • : SS 304 Grade Stainless Steel
  • : SS 304 Grade stainless Steel
  • : SS 304 Grade Stainless steel
  • : SS 304 Grade Stainless Steel
  • : SS 304 Grade Stainless Steel
  • :High Grade stainless Steel
