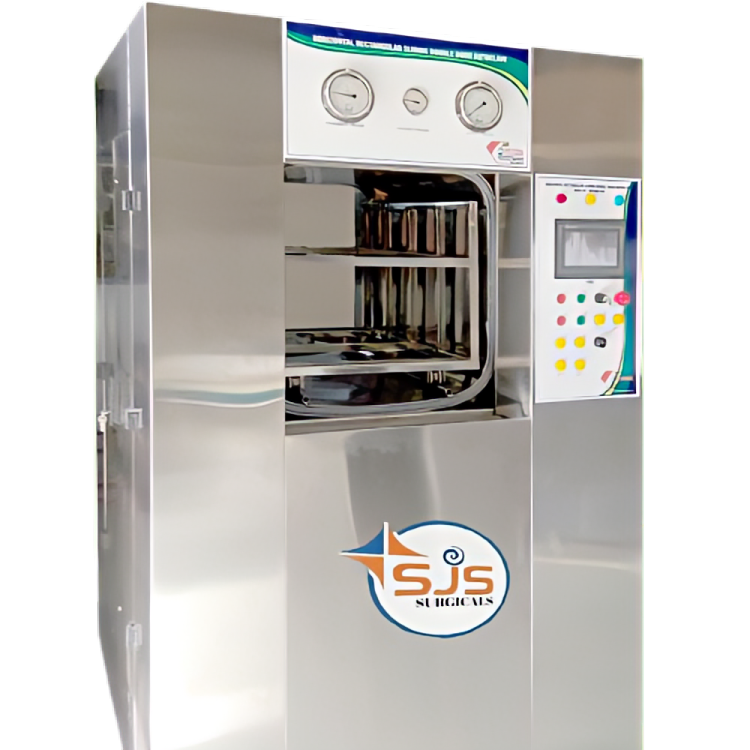

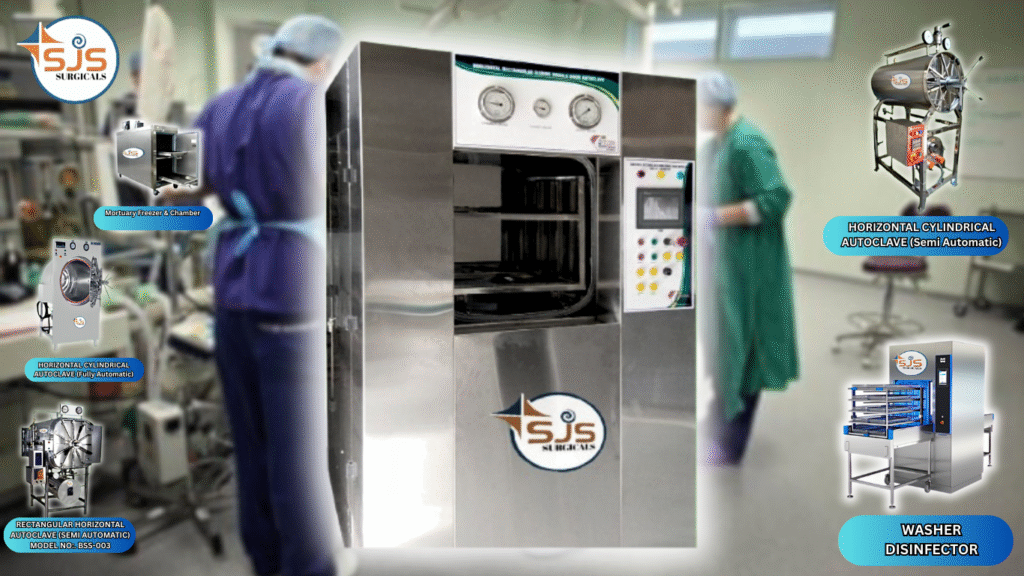

Sliding Single /Double Door Autoclave
GENERAL DESCRIPTION
• For Sterilization of glass wares / containers, vessels, linen, rubber articles culture media etc.
• Sliding doors with high temperature resistant silicone gaskets.
• Standard cycles, HPHV cycles, Bowie Dick cycle & leak test cycle.
• Fully Automatic P.LC. based control system covering all parameters with facility for printing. Manual maintenance mode independent to P.L.C.
• Confirming to various international specifications, Complete cGMP models.
• Guaranteed precise chamber temperature control with temperature uniformity as per EN554 & HTM2010.
• On line printing & recording confirming to 21 CFR part It. Options like electrical steam generator. vacuum pump, carriage. trolleys. chart recorders, data loggers, Dx station etc.
• Complete SS 316 or economic model with only contact parts in S.S 316 For value display & printing Salient Features
• Door movement Vertical
• Smooth Noiseless Door Operation
• No Human Effort Required to Operate the Door
• Aesthetic Full SS Plush Mounting
• Door Locking System under Pressurized Chamber Condition
General Information –
- SS construction with internal contact parts of SS 316.
- SS construction with Jacket parts of SS 316.
- The unit is mounted on sturdy SS tubular stand with level adjustment facility.
- The jacket volume is comparatively large (depth of 50 mm) which ensures better heat distribution in chamber.
- No drives are required. For sliding door movement, pneumatic cylinders are used.
- Autoclaves with hinged doors have mechanical pressure locking device which prevents opening of doors under pressure. The quick throw lever mechanism ensures further safety.
- Door interlocking provision prevents opening of doors under pressure as well as opening of both doors at the same time – after sterilizing cycle only Aseptic side door can be opened. Besides this interlocking, an visual indication is also provided.
- The unit has two safety valves, on the chamber and one on the Jacket, besides having a pressure
- itch which shuts off steam supply to the chamber.
- PLC’s used are Imported and compatible with P C. SCADA system can be incorporated for remote monitoring OR monitoring, controlling and data acquisition if required (Optional).
- External communication RS232
- Continuous monitoring of temperature and pressure
- Over-pressure safety release valves (Spirax Sarco)
- Emergency stop button.
- Security key or code for enabling, operation.
- Protection against over voltage, over current surges, fluctuations, spikes and leaks.
- Electrical switchgear of SIEMENS / L & T / TEKNIK make. Cables of ISI brand.
- Autoclave will be supplied along with a compatible water purification system
- VIII. UTILITIES –
- Raw steam supply (If not opted for inbuilt steam generator.)
- Water drain pipe on floor level.
- Steam drain pipe of ½” dia.
- Three phase with compulsory neutral and ground.
- Compressed Air of upto 6kg/cm2 (If not opted for inbuilt compressor)
OPTIONAL FEATURES
• Single Door/ Double Door.
• Electrical thermograph
• Digital thermograph
• Rapid Heating
• Air Oven Steam Pulsing Pressure System
PC Based I’ Micro Processor Based Controls
DOUBLE DOOR STEAM STERILIZER,
SLIDING DOOR Autoclave for HPHV cycle as per General Technical Specifications enclosed. Extra attachment of Bunk washer with PLC control system is also provided

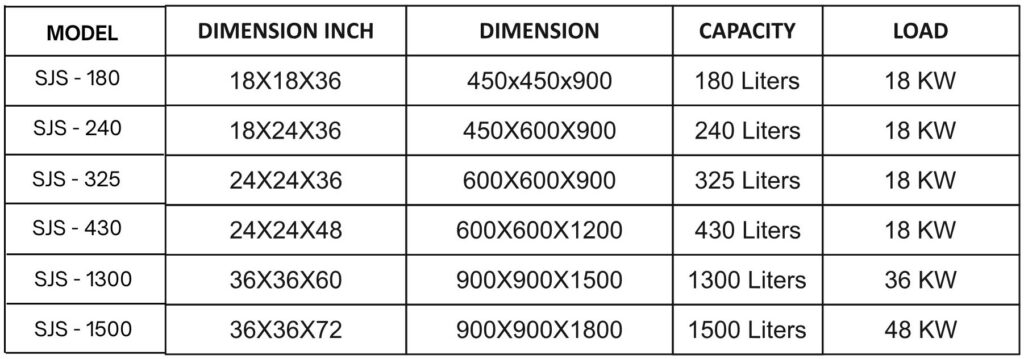

SCOPE OF SUPPLY
1) Basic Unit
2) S. S Carriage 1tno
3) S.S Floor Trolley 2 nos.
4) Fully Automatic PLC based control system Including Pneumatic actuated Valves, Solenoid Valves. Pressure Transmitter. S.S control Panel etc
5) 6pt strip chart recorder with Class -A sensors
6) Vacuum Pump ( Water ring type ) with S.S condenser
Installation and commissioning charges
